Laser Etching Machine for Yeti Cups

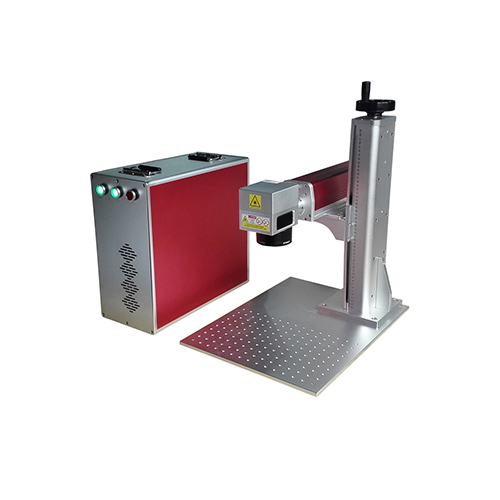

Mini Laser Etching Machine for Yeti Cups

Mini Laser Etching Machine for Yeti Cups

Product Name: Mini Laser Etching Machine For Yeti Cups
Classification: Laser Etching Machine For Yeti Cups
Application: metal and some non-metal material
Place Of Origin: China
... Send InquiryChat Now
Product Details

Mini Laser Etching Machine For Yeti Cups with mini type, portable type, desktop type, lifting type, colorful type, standby type, full-closed type. Also provide rotary type fiber laser engraver, UV purple light metal laser engraver, 3D dynamic focus shifting working table fiber laser etcher for your choice. Widely used for metal engraving and some non-metal such as hard plastic including phone cell,animal ear tag marking,etc.


Product Parameters


Model No.

PEDB-400A

PEDB-400B

PEDB-400C

Type

Portable

Desktop

Colorful

PC includes or not

Not includes PC



IPG Series

Pulsed, High Energy Ytterbium Fiber Lasers



Mode of operation

Pulsed



Polarization

random



Nominal average output power

20W - 50W



Central emission wavelength

1060-1070 nm ,Q-switched operation



Emission Bandwidth (FWHM)

<10 nm



Long-term average power instability

<5%



Pulse width, (FWHM)

100 ns



Laser switching ON time

180 μsec



Laser switching OFF time

180 μsec



Pulse Repetition Rate* kHz

20-80 kHz



Energy per pulse (PRR = 20 kHz)

0.95 mJ



Typical beam quality, M2

<1.8



Output fiber delivery length

3m



Operating voltage

220V



Max. Power consumption

600W



Net Dimensions

70*20*50cm

58*22*50cm

70*20*50cm



80*38*72cm


Net Weight

44 kgs

53 kgs

44 kgs

Gross Weight

60 kgs

70 kgs

60 kgs

Scanning Speed

0-7000mm/s



Marking Speed

0-5000mm/s



Marking size

110mm×110mm (F-theta 160)



Spot size

≤ 40 micron (F-theta 160)



Cooling unit

Air cooled



Pilot laser

650nm diode laser, visible red light for marking guide



Continuous working time

≥16h



Humidity

45~85% (no condensation)



Operating temperature

0~40°C



Control units

CT-MARK (English Version)



Remark:

1> PEDB-400A / B / C type, it is very compact type. Industry PC, Mouse and Monitor are not

included in the quotation. Customer can use your own computer or laptop to control it.

2> PEDB-400D Floor type’s quotation includes industrial PC / Mouse / Monitor.



Product Features

1.jpg Best Marking Effect: the laser beam of fiber laser etching machine for metal is fine and thin. Laser etching steel can provide the best marking effect among all the laser machines. Especially good at smallest character marking, such as mark on IC chip.

1.jpg Deep Marking: Perfect Laser fiber laser etching machine can make deep marking up to 1.0mm on stainless steel and aluminum. While YAG and Diode marking only could mark 0.2mm-0.3mm.

1.jpg Higher Accuracy: The laser etching machine for metal can reach unto 0.001mm precision, while diode only 0.01mm.

1.jpg 10 Years Long lifetime: fiber laser etching machine use the fiber laser source made by Germany IPG technology, the lifetime can reach 100,000 hours, so the machine can be used for 8-10 years.

1.jpg No consumables:The laser etching machine for metal can be used for metal marking for 8-10 years without any consumables.

1.jpg No need to adjust the laser path.

1.jpg Free of Maintenance.

1.jpg Use Integrated Air Cooling.

1.jpg Low Power Consumption: low cost, only 0.5kw/hour.

1.jpg Small and compact: the volume of Perfect Laser’s fiber laser marking machine is small, only 0.15 M3.


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of Mini Laser Etching Machine For Yeti Cups, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
