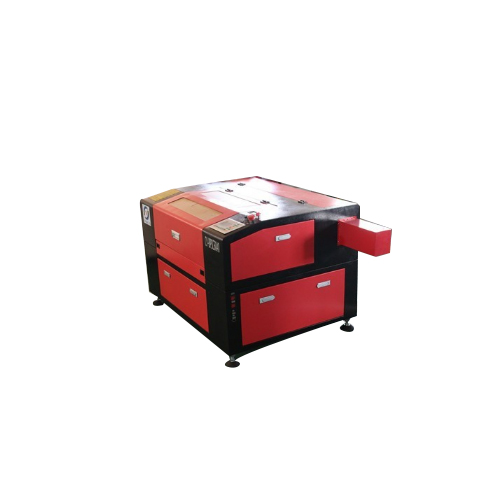

CO2 Wood Laser Etching Machine

Product Name: CO2 Wood Laser Etching Machine
Classification: Wood Laser Etching Machine
Application: plastic, cloth, leather, acrylic, etc
Place Of Origin: China
...

Send Inquiry
Product Details

Product Parameters


Items

Parameter

Processing area

600mm*400mm

Laser power

40W,60W,80W,100W

Laser type:

Sealed Co2 glass laser tube

Cooling mode:

Water cooling and protection system

Resetting positioning accuracy:

±0.01mm

Compatible Software:

Laser cut 5.3, CorelDraw  AutoCAD  Photoshop

Machine size/packing size:

890*700*1070mm/1190*1000*1370mm

Engraving speed

1-6000mm/min

Cutting speed

1-1500mm/min

Resolution ratio

≤0.0125mm

Position system:

Red dot

Interface:

USB

Minimum shaping character

letter 0.5mm, Chinese 0.5mm

Support graphic format

DST, PLT, BMP, DXF

Gross power

1000W

Driving mode:

DC0.8A 24V stepper motor

Cooling mode:

Circulation water cooling

Working voltage:

AC 110 - 220V±10%, 50 - 60Hz or depend on customer

Operating temperature

0-45C

Operating humidity:

5-95%

Driving system

stepper

Option:

Up and down working table

Rotary attachment for column materials

Packing:

wooden box

Guarantee time:

1 year, laser tube 8 months

Operation:

Video to tell customer how to operate the machine

Net weight:

240KGS before package, 290KGS after package


Product Application


Materials

Cut

Engrave

Wood/Cork/Bamboo/Veneer/MDF/Balsa wood/Plywood

Acrylic/Rubber/Plexiglass/Pmma

Glass/Fiberglass


Coated Metals/Painted Metals/Anodized Aluminum


Mylar/Delrin/Matte Board

Fabric/Cloth/Textile/Garment/Felt/Cotton/lace

Leather/Pig leather/Cow leather/Sheep leather

Ceramic/Marble/Tile


Plastic

Melamine

Paper/Cardboard/Pressboard/Chipboard

Organic board/ Double color plate

Corian


Product Features

1.jpg Advanced RD controlling system+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.

1.jpg LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.

1.jpg Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.

1.jpg Special Front and back running-through design, the unique door for the limitless engraved materials through.

1.jpg Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;

1.jpg Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.

1.jpg Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 10000 hours Laser Tube and RF metal tube for your choose, makes high efficiency and steady.

1.jpg High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.

1.jpg Red Light Pointer realizes the exact position without laser.

1.jpg Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system.

1.jpg Optional Motorized up-down work table with Auto Focus Function, very good for precise focusing and different cutting depth requirement for lots of material;

1.jpg Optional 3D Rotary System, engrave circumrotately 360 degree, applicable in column or cone work piece surface.

1.jpg Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.

1.jpg Optional Imported Ball Screw Rod, with high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of CO2 Wood Laser Etching Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
