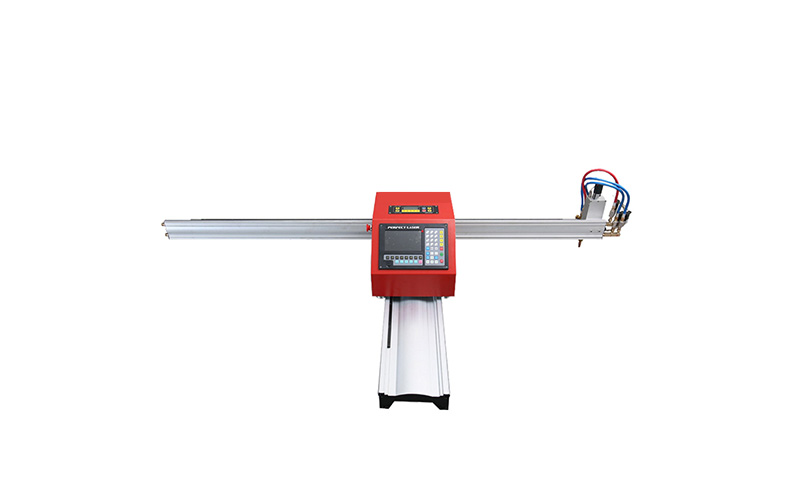

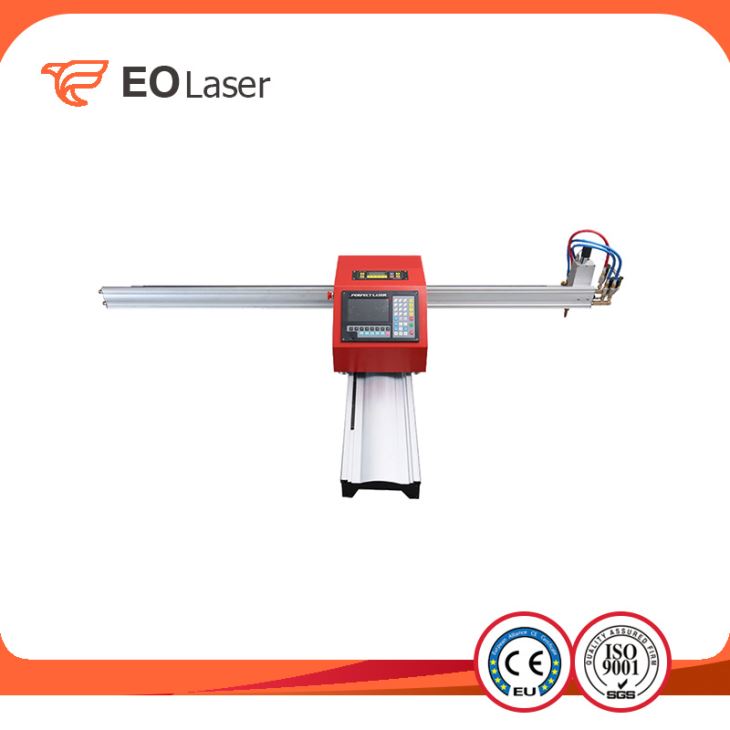

CNC Plasma Cutting Machine is automatic and high efficiency cutting equipment. CNC Plasma Cutting Machine is widely used in all kinds of carbon materials cutting, mild steel materials cutting and nonferrous metal precision sheet metal cutting....
Send Inquiry| Quick Details | |||||
| Condition: | New | Place of Origin: | China (Mainland) | Brand Name: | EO |
Model Number: | PE-CUT-C1 | Voltage: | 220v 50HZ | Rated Power: | 1kw |
| Dimension(L*W*H): | 660*340*580mm | Weight: | 300kgs | Certification: | CE ISO FDA |
| Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas | Cutting thickness: | 0.5-5mm |
Connecting way: | USB | Working Area (mm): | 1.3*2.5m, 1.5*3m and Customised | Driving System: | three-phase AC motor Single-driving |
| Transmit way: | Taiwan imported ball screw | Max. cutting thickness: | 20mm | Cutting Speed: | 0-6000mm/min |
| voltage of power: | 220V/50HZ | Rail guide: | Precision work round | Product name: | cnc plasma cutting machine |
Application:
CNC Plasma Cutting Machine is automatic and high efficiency cutting equipment. CNC Plasma Cutting Machine is widely used in all kinds of carbon materials cutting, mild steel materials cutting and nonferrous metal precision sheet metal cutting.
Features:
Cutting shape is diverse: you can cut any straight line and arc composed of most of the plane graphics.The slits are flat ,the cutting accuracy is meet the national standards,and modeling offinished product is beautiful and generous.
Economy portable and random combination: the combination of installation, can be free to move as a whole, do not occupy a fixed place, saving processing site.
Cutting thickness: suitable for the flame cutting thickness of within 120 mm, more than this thickness can be customized to meet your different processing needs.
A variety of cutting methods:can choose a single flame cutting, single plasma cutting or flame plasma cutting, according to different processing materials to select the appropriate cutting method.
Cutting precision: the use of seamless gear rack drive, stepper motor drive, Taiwan imported linear guide, the machine running smoothly, high precision.
CNC programming: Based on AutoCAD, EO independent research and development of automatic graphical programming software,is easy to operate, stable and reliable.
| Cutting shape | Programmable cutting of straight and arcs of any flat shape steel plate parts |
| Cutting precision | national standard JB / T10045.3-99 |
| Installation | combination of installation, can be free to move, do not occupy a fixed site |
| Cutting width | transverse span 1900mm, effective cutting width 1500mm |
| Track length | orbit length of 2800mm, effective cutting length of 2500mm |
| Torch configuration | cutting torch system 1 set, according to customer needs assembly flame, plasma dual |
| Cutting thickness | 4-120mm, more than this thickness to be customized |
| Ignition and increase | automatic ignition, electric increase |
| NC System | Embedded CNC Cutting Control System |
| NC programming | Design of Automatic Graphic Programming Software Based on AutoCAD for NC Programming |
| File transfer | with USB interface |
| Cut gas | oxygen + acetylene or propane |
| Speed range | 0 --- 3500mm / min (mm / min) |
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
