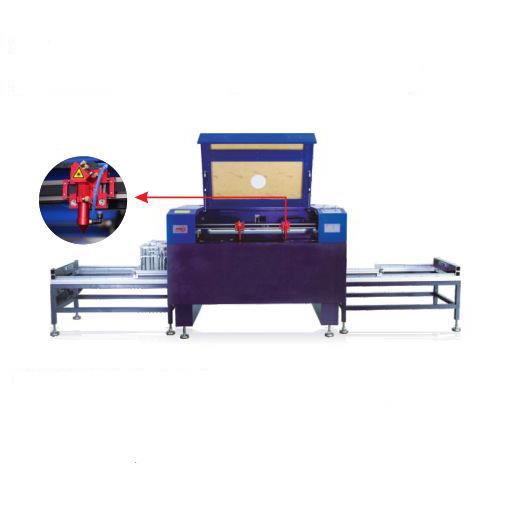

Wood Laser Cutting Machine For Coconut

Wood Laser Cutting Machine For Coconut

Wood Laser Cutting Machine For Coconut combines the functions of cutting, punching and engraving. It can easily complete the circular and heart-shaped cutting and engraving of various LOGO characters through software. The processing precision is high, the speed is fast, and the biggest advantage of processing coconut is that it does not have any effect on the life and taste of the food in the coconut shell. The depth of processing can be automatically adjusted by software, and the graphics are not limited....

Send Inquiry
Product Details
Model
EOJM-640YZEOJM-960YZEOJM-1080T-YZEOJM-1090T-YZ
Laser typeDomestic sealed off CO2 laser tube
Cutting area2 station4 station4 station16 station
Laser power80W(optional 100W 120W 130W 150W)
CoolingWater chiller
Moving systemStepping motor
Engraving speed0-64000mm/min
Max cutting speed0-36000mm/min
Cutting energy controllingCan be fine-tuned
Cutting speed controllingCan be fine-tuned
Dimension(mm)1210×840×11301510×1135×11301610×1350×11301610×4000×1130
Environmental requirementsTemperature 15℃      humidity 30%-80%
Power supplly220V/50-60HZ, 10Amax

Laser processing uses the invisible light instead of the traditional mechanical knife to project a high-energy laser beam onto the surface of the coconut shell and generate thermal effects to form slits and graphics. The coconut laser cutting machine combines the functions of cutting, punching and engraving. It can easily complete the circular and heart-shaped cutting and engraving of various LOGO characters through software. The processing precision is high, the speed is fast, and the biggest advantage of processing coconut is that it does not have any effect on the life and taste of the food in the coconut shell. The depth of processing can be automatically adjusted by software, and the graphics are not limited.


Features

1. Adopting international advanced controller, the performance is greatly improved; used the smooth S-type acceleration/deceleration control software design, so the action is fast and stable; and the automatic light decay compensation technology makes the different cutting parts achieve the desired effect.

2. Adopted the external sliding ball guide transmission system. Under the condition of ensuring stability, the structure of the guide rail system is lighter and improves the machining speed.

3. Used improted stepper motor, with the improted belt drive and rail structure, the entire laser processing speed and accuracy performance has been greatly improved.

4. Electrical components are imported brands, using standardized industrial wiring, different from the messey wire and cable boxes of small manufactures, anti-electric interference ability is stronger.

5. Using imported lenses, lighter, and heat loss is smaller, greatly improving the cutting effect.

6. Support jog function and power-off continous carving, work preview function. Support dynamic display of machining trajectories and coordinate points, real-time display and tracking of machining progress.


截图20190628180602
