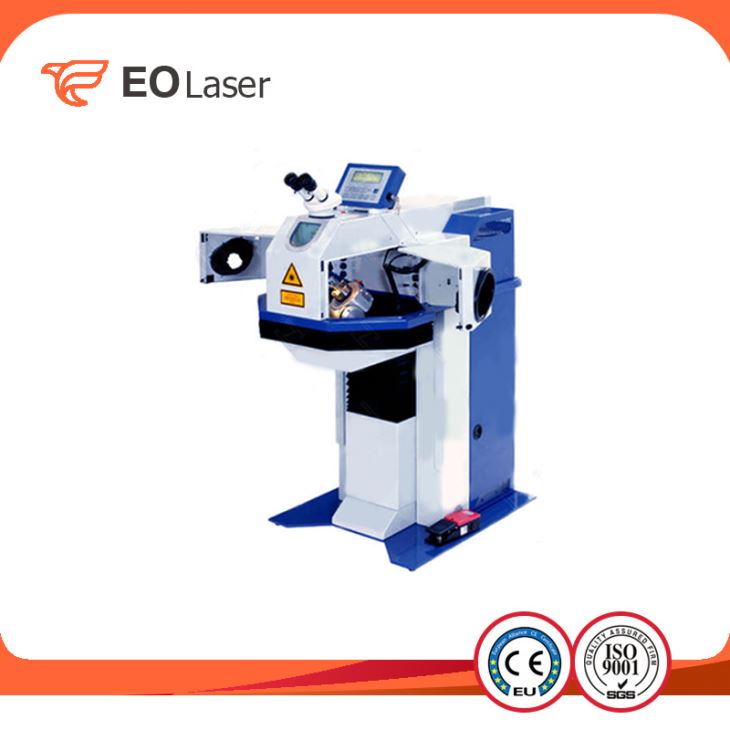

Portable cheap jewelry laser welding machine is a product specially designed for jewelry laser welding. Jewelry laser welding machine is mainly used for repair welding and spot welding of gold and silver jewelry....Send Inquiry
Portable cheap jewelry laser welding machine is a product specially designed for jewelry laser welding. Jewelry laser welding machine is mainly used for repair welding and spot welding of gold and silver jewelry.
The welding process of the laser spot welder is thermally conductive. That is, the laser radiation heats the surface of the workpiece. Surface heat is spread to the inside through heat conduction and controls the width, energy, peak power and repetition frequency of the laser pulse. Because of its unique advantages, the jewelry laser welding machine has been successfully used in the processing of gold and silver jewelry and welding of small parts.
1. Jewelry laser welding machine adopts air-cooled heat dissipation, no water cooling machine is needed, the whole can be placed on the desktop, and the jewelry laser welding machine is small in size.
2. The ergonomic design of the laser jewelry repair machine is ergonomic and will not work for a long time.
3. Double observation system of microscope and CCD, CCD is built into the control screen, reducing the external space of jewelry laser welding machine.
The laser spot welding machine is mainly used for making holes and spot welding of gold and silver ornaments. The laser spot welding machine can also be applied to cold working high alloy steel, hot forged high alloy steel, nickel-containing tool steel, advanced Weld-welded metal materials such as steel, copper alloys, brass, copper, and high-toughness aluminum alloys.
The ratio of the expanding
The focus length
100W / 150W
The biggest single pulse energy
40J / 50J
Temperature 5℃~30℃, humidity < 85%.
Continuous Working Time
Within 1 minute (this is more suitable for potholes that require welding wire.)
External (1P), leaving a proper spacing around to ensure heat dissipation.
Ring light brightness adjustment
Processing area manual focus knob
Wheels at the bottom for flexible movement
