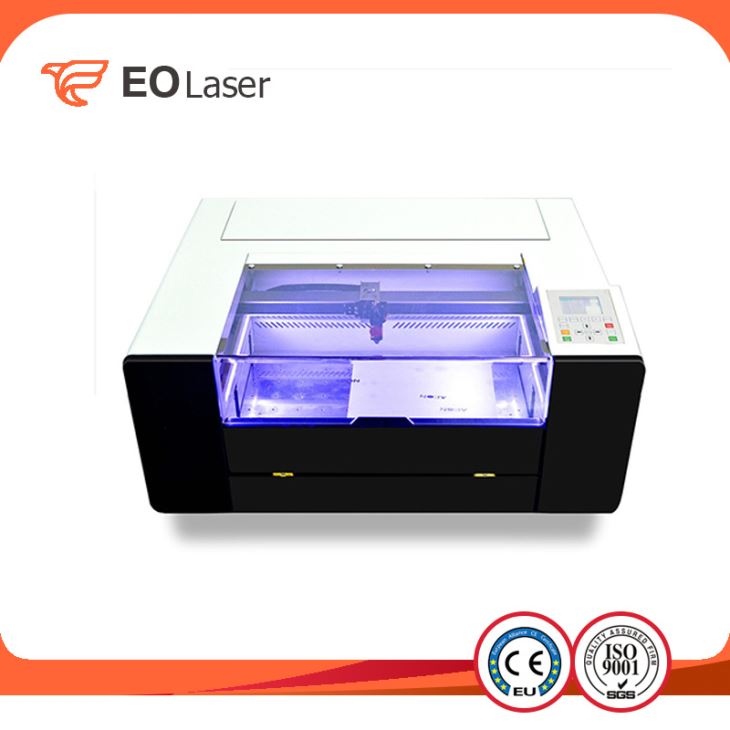

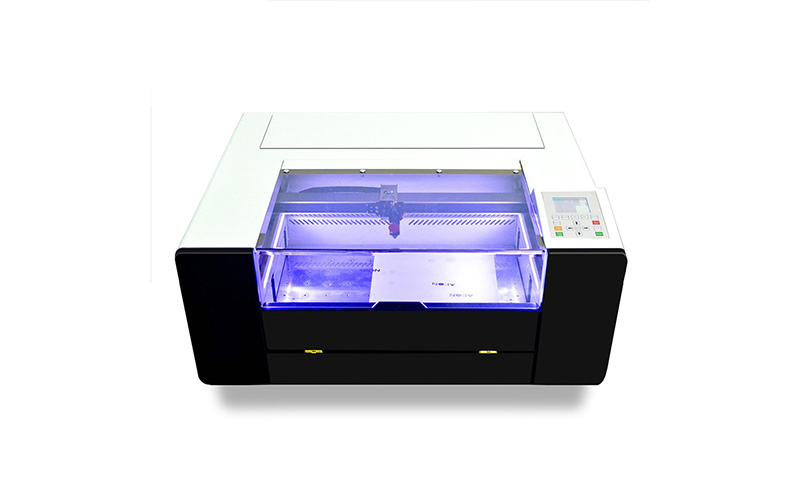

Photo Wood Stamp Etching Laser Engraving Machine

Photo Wood Stamp Etching Laser Engraving Machine

High reliability:All the core parts and components are adopt international famous brands . such as, the motor is Panasonic and the water-cooling system from Shenzhen SUNRISE Industrial CO.,LTD.Ultra low operation cost and simplicity of operation.... Send Inquiry
Product Details



Quick Details
Application:Laser Engraving, Laser engraving
Condition:New
Laser Type:CO2
Engraving Area:500*300mm
Engraving Speed:0-60000mm/min
CNC or Not:Yes
Cooling Mode:Water Cooling
Applicable Material:Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Wood
Graphic Format Supported:AI, BMP, DWG, DXF, PLT
Place of Origin:China (Mainland)
Brand Name:EO
Model Number:EO-5030
Dimension(L*W*H):1020*700*600mm
Certification:CE, ISO, ISO,CE
After-sales Service Provided:Engineers available to service machinery overseas
Product name:LZ-5030 photo wood stamp etching laser engraving machine
Laser power:40W
Laser type:CO2
Cooling mode:Water cooling
Warranty:3 Years
Engraving area:500*300mm
Engraving speed:0-60000mm/min
CNC or not:Yes



ModelMIRA
Woring Area300mm*500mm
Machine Size900mm*710mm*430mm
Laser tube40W/60W/80W CO2 Laser
Machine Weight110Kg
Cooling MethodBuilt-in Water Cooling System
Engraving Speed0-140000mm/Min
Cutting Speed0-68000mm/Min
Z-Axle Height100MM Adjustable/MIRA Plus 150MM Adjustable
Laser Output Control1-100% Set by Software
Minimum Engraving SizeChinese Charator 2.0mm*2.0mm, English Letter 1.0mm*1.0mm
Max Scanning Precision4000DPI
Locating Precision<=0.01
Cutting Thickness0-8mm(depends on different materials )
Graphic Format SupportedDSP/PLT/BMP/DXF/AI/DWG etc.
Compatible SoftwareCorelDraw/Photoshop/AutoCAD/All kinds of Embroidery Software
Power SupplyAC 220V+10%, 50Hz/60Hz



1.H Class Fully Enclosed Dustproof Optical Linear Module

 High precision and speed, 3 years warranty, SD laser cutting speed is twice faster than most China laser supplies

2.Large Format visual working window, LED lighting for work area

Laser protective material made Visual Working Window. Easy to Observe. LED lighting for work area.

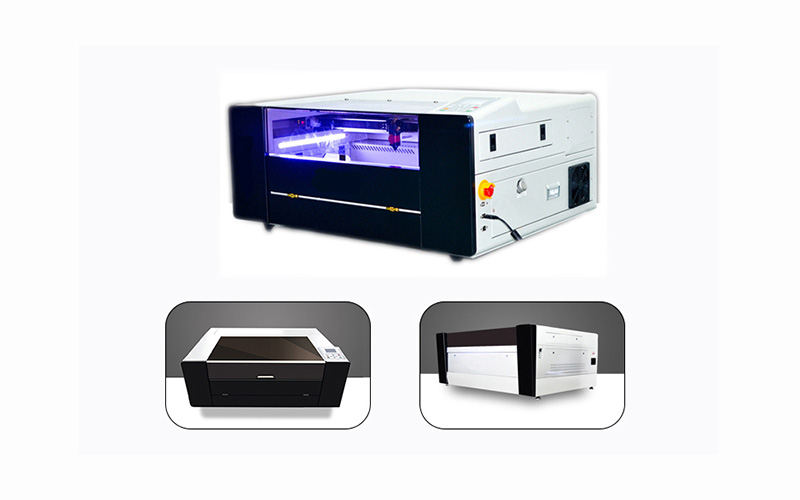

3.Unique simple beautiful-looking appearance, strong square frame structure

Enable laser cutting machine no deformation. Whether in transportation or long time use.

4.II-IV material ZnSe focus lens with II-IV mirrors

Longlife, high transmittance, good focusing effect and stability

5.45 degrees mirror adjustment set

Easy to adjust laser path

6.High quality leadshine 3-phase stepper system

Make the cutting edge smooth and wavy

7.Fully Enclosed Dustproof belt transmission system

Higher cutting accuracy, less jitter dustproof and anti wear, incision smooth, section straight, do not need to second operation.

8.CO2 glass sealed catalyst laser tube

Small laser spot,stable beam 5000 hours spanlife .Reci laser tube and EFR laser tube for optional


Dual table-board cutting quality control system

high precision ball screw transmission system(X/Y axis)

Panasonic high precision servo motor

up&down separate powerful double exhaust system

professional constant temperature chiller

USB control system(graphic format supported: DXF,PLT,AI, etc)

Die-cutting plate,wood, organic glass,plastic, garments, paper, leather, rubber, and other nonmetal materials.


LZ-5030 photo wood stamp etching laser engraving machine


18mm cutting speed;

250-300mm/min(130W)

High precision: Adopt Panasonic servo motor . The combination of imported ball-screw and linear- guiding make it has high precision.

High reliability:All the core parts and components are adopt international famous brands . such as, the motor is Panasonic and the water-cooling system from Shenzhen SUNRISE Industrial CO.,LTD.Ultra low operation cost and simplicity of operation(the operation cost less than 15 RMB/ hour).


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
