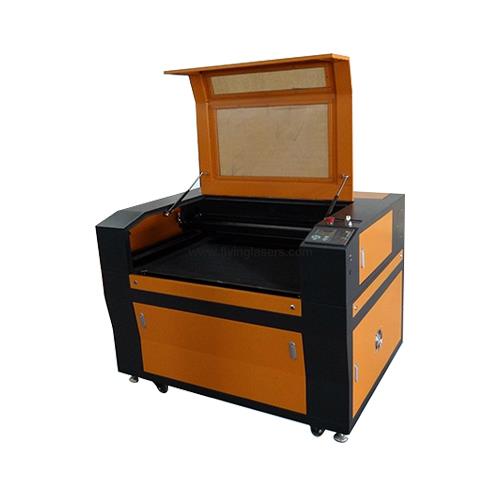

Glass CO2 Laser Etching Machine

Glass CO2 Laser Etching Machine

Product Name: Glass CO2 Laser Etching Machine
Classification: Glass Laser Etching Machine
Application: nonmetal materials, etc
Place Of Origin: China
... Send Inquiry
Product Details

Glass CO2 Laser Etching Machine for cutting and engraving nonmetal materials like organic glass plastic CE approval JD90120 model laser engraving machine is the most popular model in our products.

Laser power from 60W, 80W, 100W to 150W (Reci with 10000 hours life time).


Product Parameters


Product model

JD90120

Maxi working area

900x1250mm

Laser Types

Hermetic And Detached CO2 Laser Tube

Laser power

80W(Options: long life time 80W,100W,150W,180W)

Engraving speed

0-75,000mm/min

Cutting speed

0-40,000mm/min

Location precision

<0.01mm

Resetting positioning accuracy

≤0.01mm

Power supply

AC 220V/50Hz

Gross power

<1,000W

Operating temperature

0 - 45°

Operating humidity

5 - 95%

Minimum shaping character

English 1×1mm

360°slope engrave

Yes

Driving system

stepper

Cooling mode

Water-cooling and protection system

Auxiliary Devices

Exhauster And Exhaust Pipe

Software

Lasercut 5.3

Graphic format supported

BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc

Optional

Up&Down work table, Digital display, Rotary Clamp, Red light pointer, Auto focus, water chiller



1.jpg Water chiller: Used for cooling the laser tube. The water chiller cooling effect is much better 图1than water pump, can also long life the laser tube.


Product Application

1.jpg Available materials: unmetal such as rubber sheet, acrylic, oxhorn, marble, leather, cloth, double-color board, timber, crystal, etc.

1.jpg Comprehensive application: textile garment, leather, crafts&advertisement, car, mechanism, electron, timekeeper and jewelery industry and so on.


Product Features

1.jpg The "front" and "back" of our laser machine can be open, suitable for super-length material process.

1.jpg Exclusive no water warning and automatic protection system, to protect the working life of laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.

1.jpg LCD control panel in English, convenience of operation control.

1.jpg Import liner bearing with high engraving precision

1.jpg offline control system which can not only work without computer, but also connect to U disk, USB communication

1.jpg Imported metal mirrors, with good ability of reflection and focusing, long working life.

1.jpg Red dot position system realizes the exact position without laser.

1.jpg Auto Focus technology, realize "easy focus & high efficiency " in real, not only a word.


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of Glass CO2 Laser Etching Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
