Glass Cup CO2 Laser Etching and Engraving Machine

Glass Cup CO2 Laser Etching and Engraving Machine

Product Name: Glass Cup CO2 Laser Etching And Engraving Machine
Classification: Glass Laser Etching Machine
Application: nonmetal materials, etc
Place Of Origin: China
...

Send Inquiry
Product Details

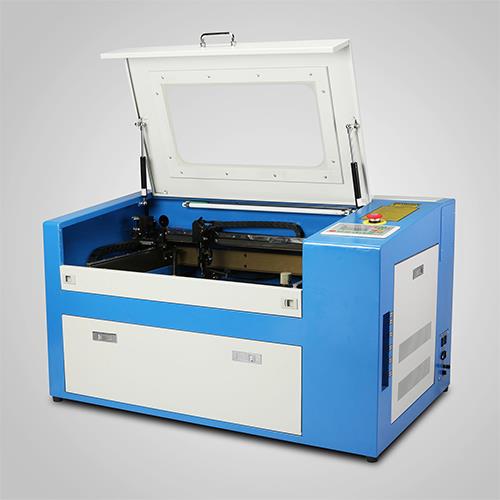

This Glass Cup CO2 Laser Etching And Engraving Machine is our small co2 laser engraving cutting machine FL-690.

It is equipped with a precision 80W water cooled CO2 laser that can engrave almost any non-metal materials on almost any surface. The machine can also be used for cutting many different materials. With the Cylinder Rotary Attachment, you can engrave any cylindrical object, such as cup, brush pot, musical instrument and so on. It supports multiple graphic formats, such as PLT / DXF / BMP / JPG / GIF / PGN / TIF and so on. This machine is equipped with DSP Control System for CorelDraw/AutoCAD and other advanced software.This machine is compatible with WIN8,WIN7, Vista and XP.


Product Parameters


Laser power:

60W, 80W, 100W, 130W, 150W, 180W

Laser type:

Hermetic CO2 glass tube

Power supply:

110V/220V, 50Hz/60Hz

Working area:

600x900mm

Max moving speed:

1500mm/s

Locating precision:

<0.01mm

Min shaping character:

Letter: 1x1mm

Operating temperature:

5℃-40℃

Resolution ratio:

≤4500dpi

Control configuration:

DSP

Data transfer interface:

USB(offline)

System environment:

WINDOWS 2000/WINDOWS XP/ WIN7/VISTA

Cooling way

Water Cooling and protection system

Graphic Format Supported

The Files which CorelDraw, Photoshop, AutoCAD can identify
(BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX,
CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX)

Compatible software:

CorelDraw, AutoCAD, Photoshop

Cutting thickness:

0-10mm (depends on different materials)

Color separation:

Separation of cutting up to 256 colors

Sloping engraving:

Yes, slope can be designed discretionarily

Cuts off the water supply the protection:

Yes

Machine Dimension:

145x101x111cm

Pacakge dimension(wood package)

157x123x131cm

Package weight

340 kgs

Optional

Fixed table/honey-comb table/rotary/aluminum knife table/chiller



Product Application

1.jpg Applicable industry

This machine is suitable to woodworking, textile cutting, industrial prototyping, industrial marking, sign making, medical part marking, aerospace, architectural modeling, specialty advertising, plastics fabricating, flexo, point of purchase, rubber stamps, picture framing, gift manufacturing, bar coding, engraving, gasket cutting, puzzles, cabinetry, awards & recognition, personalized pens, door pulls, cut scroll patterns, games & toys, finger joints, inlays & overlays, fraternity paddles, music boxes, light switch plates, jewelry boxes, parts marking, router templates, desk sets, scrap booking, photo albums, jewelry, crafts, Italian charms.

1.jpg Applicable materials


Applicable materials

Cut

Engrave

Acrylic | Plexiglass | PMMA | Perspex

Organic board | Double color sheet

Wood | Plywood | Veneer | MDF | Balsa

Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather

Fabric | Cloth | Textile

Carpet | Mat | Rug | Wool Felt

Paper | Cardboard | Chipboard | Press Board

Ceramic | Tile | Marble | Glass


Plastic

Fiber Glass | Filter Cloth


Coated metal/anodized metal




Product Features

1.jpg CE/FDA/ISO certificate

1.jpg 20 years' experience, low price

1.jpg OEM supported, best after-sale service

1.jpg China best co2 laser tube (RECI/EFR/YONGLI)

1.jpg Best design in details, professional engineer for machine test


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of Glass Cup CO2 Laser Etching And Engraving Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.

Inquiry
Hot Tags: glass cup co2 laser etching and engraving machine, China, manufacturers, suppliers, buy, cheap, price
