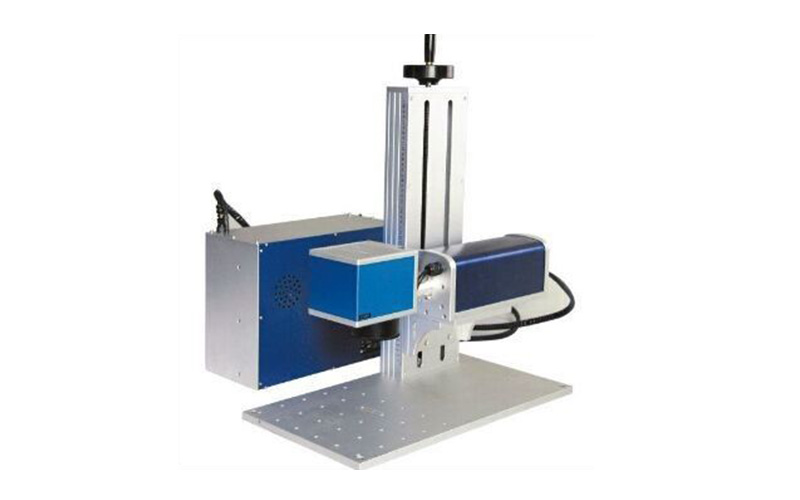

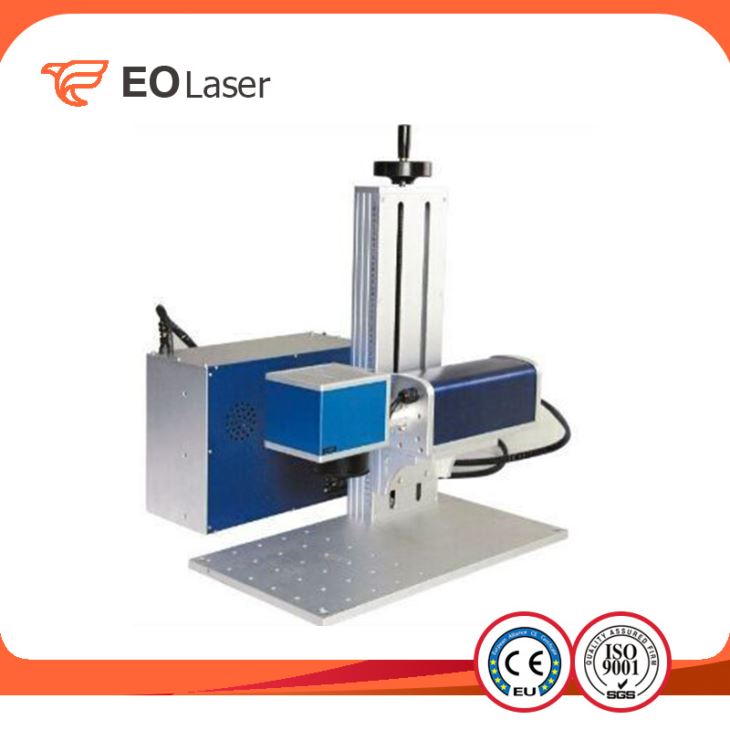

High Hardness Alloy Steel Marking Machine

High Hardness Alloy Steel Marking Machine

The machine is used in metal and nonmetal materials, stainless steeel, aluminum, high hardness alloy steel, ABS, etc....

Send Inquiry
Product Details



Product Details
Place of Origin:China
Brand Name:Fiber Laser
Certification:CE
Model Number:LB-MF


Detailed Product Description
Model:LB-MFWavelength:1064nm
Speed:≤8000mm/sMin Liner Width:0.01mm
Beam Quality:M2≤1.8Control System:EzCad.2.10.1
Laser:Fiber LaserMin Characters:0.15mm
Power Supply:AC220V/50HzWorking Area:50x50mm-300x300mm
Dimension:800x680x700mm


Standard Accessories


A semiconductor module

A set of high-speed vibrating mirrors

A set of marking control system

A set of laser marking sysytem

An industrial computer

A marking work table

A red laser pointer

A pedal switch

A set of marking software

A "Instruction Book", "Operation Manual" and "Training Video”




Technical parameters
TypeLB-MF10LB-MF20LB-MF30
Power10W20W30W
Beam qualityM2≤1.4M2≤1.8M2≤1.8
Marking speed≤7000mm/s≤8000mm/s≤8000mm/s
Power consumption0.5KW0.8KW1.2KW
Fiber LaserAO Q-Switch Pulse Fiber Laser
Wavelength1064nm
Laser marking softwareEzCad.2.1
Working area50x50mm-300x300mm
Minimum Linewidth0.01mm
Repeated precision±0.001mm
Min characters0.15mm
Cooling systemair-cooling
Location SystemRed dot indicater
Power supplyAC220V/50Hz
Control SystemEzcad Motion Control Card-PC

Dynamic Focusing

device

Yes
Dimension800x680x1200mm


a. Using the third generation of optical fiber solid laser, the electro-optical onversion ecfficiency of pump light source can reach to 80% after fiber coupling. Higher beam quality, long use time, laser life can reach 100000 hours(Lamp pump YAG is around hundreds of hours, semiconductor is around 10000 hours).

b. Perfect beam quality achieved the highest and excellent marking effect. And it has great advantages of doing anti-white,matte,chromatic...on the stainless steel.

c. Adopted imported high-speed scanning head, and combined with software makes engraving very fast, so the processing speed is 3 to 5 times quicker than the ordinary YAG and DP semiconductor.

d. Air-cooling, no consumables, free maintenance, save power and energy(total power is 500W), low cost of latter usage, the annual electric savings would be around USD3000-5000.

g. Integrated modularization design, convenient maintenance, and the small volume can save more space.

e. High electrooptical efficiency: integrated electooptical efficiency reaches above 20%, greatly saved power consumption and operation cost.

f. Absolutely environmental marks without intermediate mediators involved in processing, completely in conformity with ROHS Standards.

h. Support JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW and other documents, and can form the serial number,production date, bar code and QR code automatically.

i. Optional rotary workable and other automated matching system.


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service


Inquiry
Hot Tags: high hardness alloy steel marking machine, China, manufacturers, suppliers, buy, cheap, price
