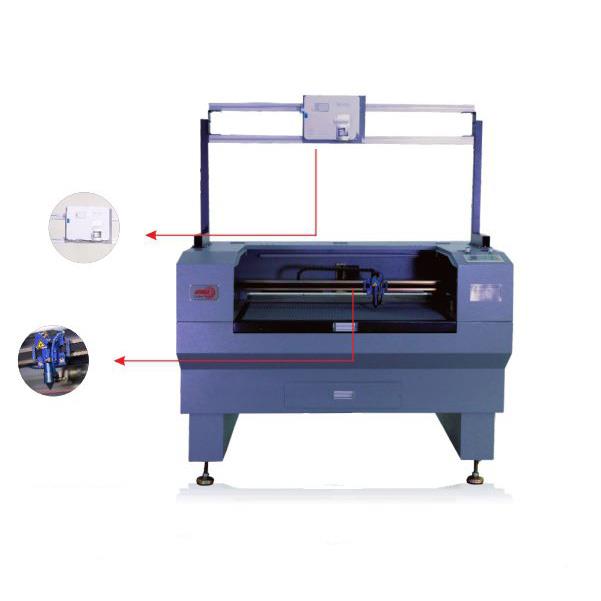

Knitted Upper Fabric Laser Cutting Machine

Knitted Upper Fabric Laser Cutting Machine maninly use projection plate positioning cutting, fast cutting, automatic locking; And intelligent typesetting, saving time and materials. Super intelligent typesetting software(optional) can be based on the size of the missing figure and the number of workpieces to be typeset....

Send Inquiry

Product Details

Model	EOJM-960H-TY	EOJM-1080T-TY	EOJM-1480T-TY	EOJM-1610T-TY
Laser type	Domestic sealed off CO2 laser tube
Cutting area	900mm×600mm	1000mm×800mm×2	1400mm×800mm×2	1600mm×1000mm×2
Laser power	80W
Cooling	Water chiller
Moving system	Stepping motor
Engraving speed	0-64000mm/min
Max cutting speed	0-36000mm/min
Cutting energy controlling	Can be fine-tuned
Cutting speed controlling	Can be fine-tuned
Dimension(mm)	1510×1135×1130	1610×1350×1130	2010×1350×1130	2210×1550×1130
Environmental requirements	Temperature 15℃ humidity30%-80%
Power supply	220V/50-60HZ, 10Amax

Features

The machine maninly use projection plate positioning cutting, fast cutting, automatic locking; And intelligent typesetting, saving time and materials. Super intelligent typesetting software(optional) can be based on the size of the missing figure and the number of workpieces to be typeset. In the processing format, the layout method can improve the material utilization rate, and is more artificially typeset, which can greatly save processing materials and typesetting time.

Applicable industry

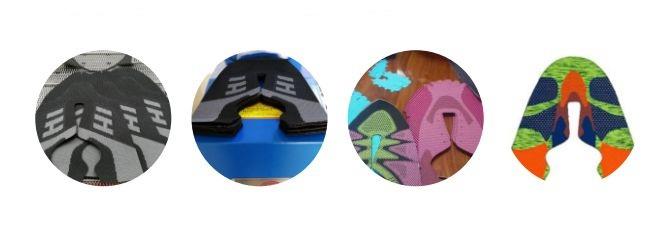

Flying weaving, woven label, mesh, air mesh cutting etc., as well as seamless fit, logo, mid-floor cutting, TUP layer cutting and other laser processes.
