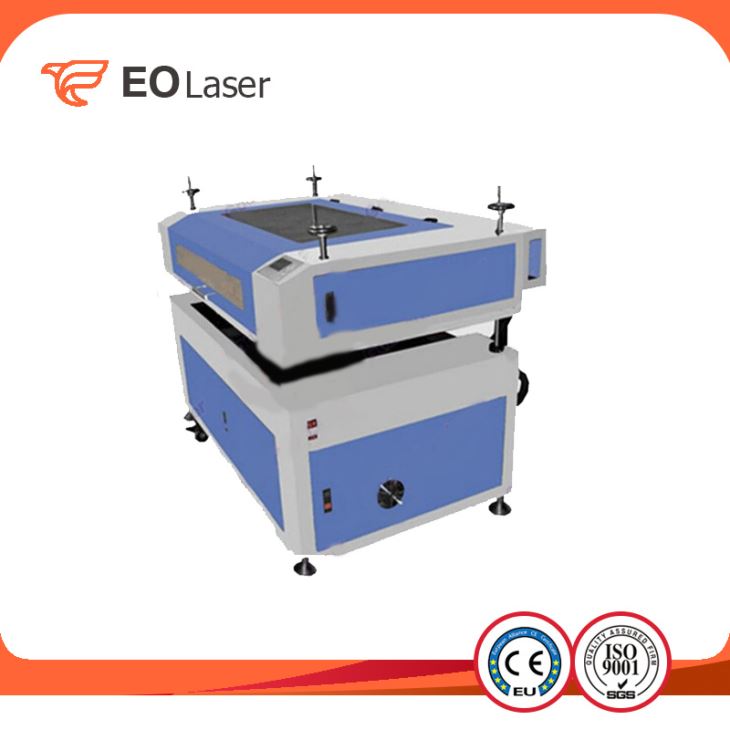

GW-1290 Marble Laser Engraving Machine

GW-1290 Marble Laser Engraving Machine

With stable and perfect design concept, equipped with advanced industrial cooling system and Automatic water alarm system,greatly improved the stability and safety of continuous working.... Send Inquiry
Product Details



Parameters:
ModelGW-1290
Engraving and Cutting Area1200*900mm
Tube typeCO2 sealed glass tube
Laser wave10.6um
Laser PowerRECI-80W
CoolingPure water (GZ teyu water chiller CW3000)
Engraving Speed0-75,000mm/min
Cutting Speed0-40,000mm/min
Reposition Accuracy±0.01mm
Minimum Character SizeEnglish:1mm ; Arabic numbers:1mm
Resolution4,000 dpi
File output mode2.0 USB interface
Machine Power<2,000W
Support Format and SoftwarePLT,DST,DXF,DWG.CDR, AI, Auto CAD, Coreldraw, Photoshop, laser cut 5.3
Working Environment Temperature0-45°C
Drive systemLeashine Stepper motor
Control systemRuida DSP offline control system
Exhaust smoke systemBig exhaust fan ( Optional Air purified)
Working Voltage220V,50HZ/60HZ
N.W.400KG
G.W.460KG
Warranty time2 year for machine (12 months for RECI tube)
PackageWooden case
Packing size1870*1650*1300mm
Delivery time3 working days after received the deposit



Features:

Meet the demand of professional engraving on large size stone.

With stable and perfect design concept, equipped with advanced industrial cooling system and Automatic water alarm system,greatly improved the stability and safety of continuous working.

Unique closed design of smoke exhaust system eliminates smoke leaking,and ensures the perfect and clean working environment.


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
