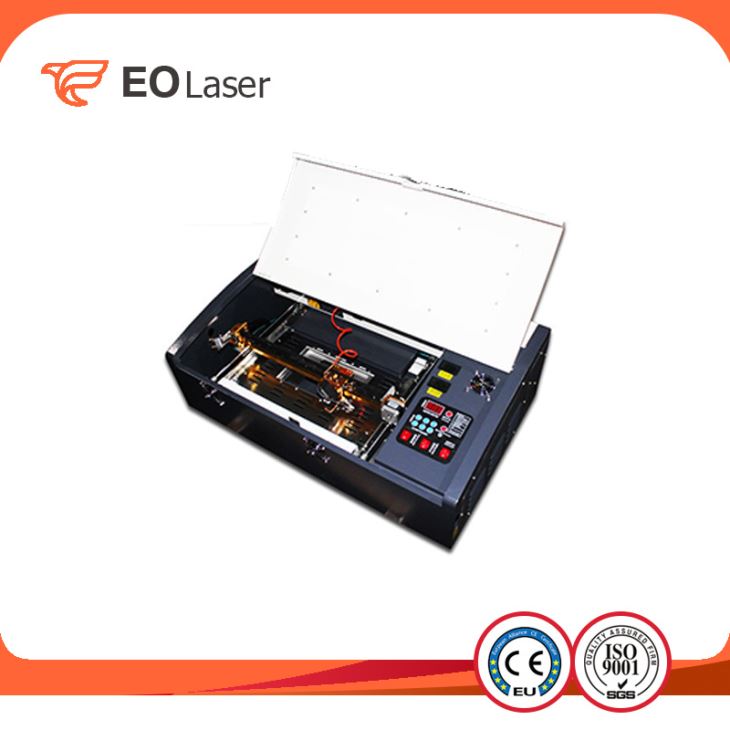

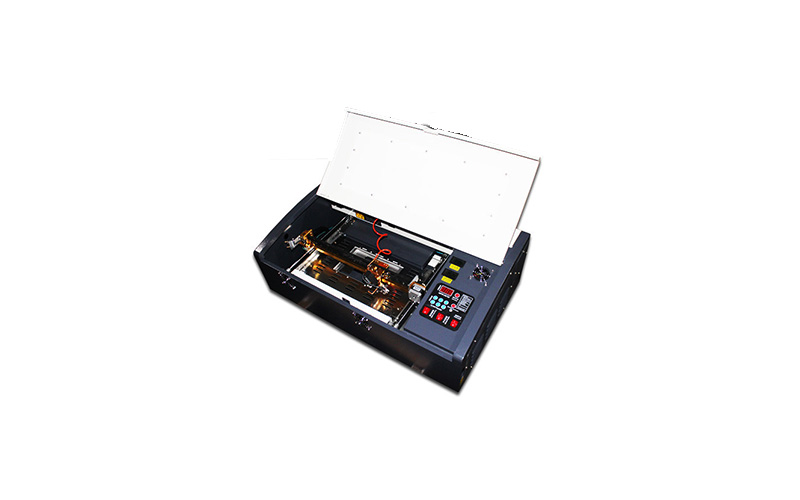

Mini Laser Etched Glass Machine,laser Glass Engraving Machine

Mini Laser Etched Glass Machine,laser Glass Engraving Machine

Laser engraving machine can work with most materials, such as Cloth, leather, wool, acrylic, plexiglass, board, plastic, rubber, crystal, ceramic tile, bamboo product, jade, granite, marble, resin and other non-metal materials....

Send Inquiry
Product Details



Quick Details
Application:Laser Engraving
Condition:New
Laser Type:CO2
Engraving Area:300*200mm
Engraving Speed:0-1000mm/s, 0-1000mm/s
CNC or Not:Yes
Cooling Mode:Water Cooling
Applicable Material:Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin:China (Mainland)
Brand Name:EO
Model Number:EO320
Dimension(L*W*H):800*500*250mm
Certification:CCC, CE, GS, ISO, SGS, UL
After-sales Service Provided:Engineers available to service machinery overseas
Laser Power:40W 60W 80W 100W 130W 150W
Working area:330*210mm
Cooling system:Water Chiller
Laser tube using life:100000h
Power Supply:220V/50HZ
Laser type:CO2 Sealed Laser Tube
Cutting Speed:0-1000 Mm/s
certification:CE/ISO/FDA



Features:

1.Wide range:Co2 laser can for almost any non-metallic materials for carving cutting.

2.Multi function display, can adjust the 0.1 power, convenient and quick.

3.Using PEEK super steel, wear-resistant high temperature.

4.Equipped with multi-function socket, easy to exhaust fan and water pump installation.



Application Materials:

  Laser engraving machine can work with most materials, such as Cloth, leather, wool, acrylic, plexiglass, board, plastic, rubber, crystal, ceramic tile, bamboo product, jade, granite, marble, resin and other non-metal materials.



Applicable industry:

 Laser engraving machine is suitable for leather clothing, template cutting, printing and packaging, advertisement decoration, building decoration, computer embroidery tailoring, arts and crafts, paper products, plastic industry, acrylic board, decorative board, and other non metal sheet precision cutting and other industries.


Technical Parameters:
power40W
Power supply voltageAC220V
Max engraving area300*200mm
Working speed0-500mm/s
Machine dimension800*500*250mm
SoftwareCorelDraw, AutoCAD, Photoshop
Graphic format SupportedPLT/DXF/BMP/JPG/GIF/PGN/TIF
Packagewood case
Gross weight35KG
Engraving accuracy0.8*0.8mm,1.8*1.8mm
Power consumption210W


Advantages

1.Long lifespan laser source: 100,000hours.

2.USB interfaces swift and stable transmission.

3.Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT, etc..

4.Without any maintenance, air-cooled.

5.Configuring HTK industry imported linear rail plotter, X and Y axes are linear guides, high stability, zero failures.

6.Using metal mirror, long service life, reflective effect is good.


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
