Heavy Duty Tombstone Laser Etching Machine EO-1325

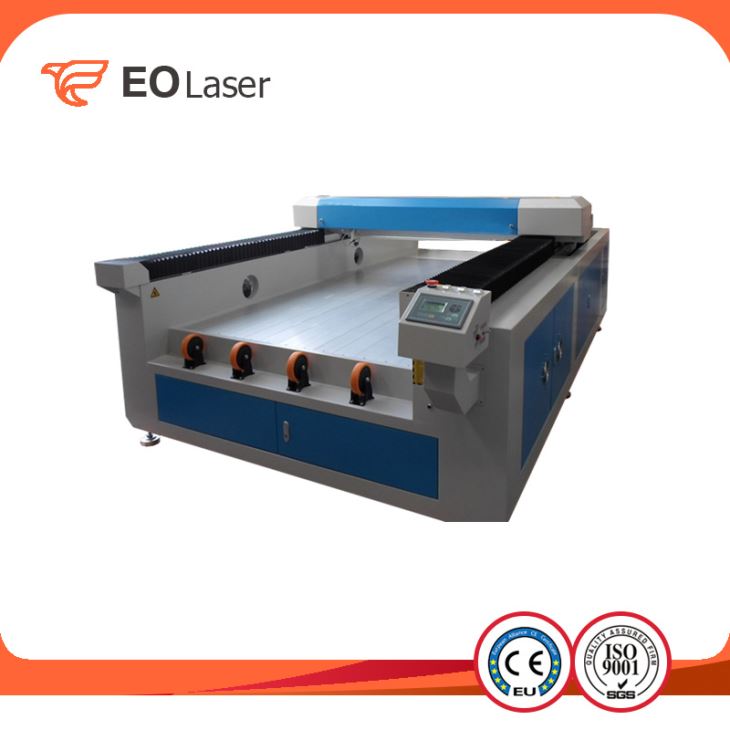

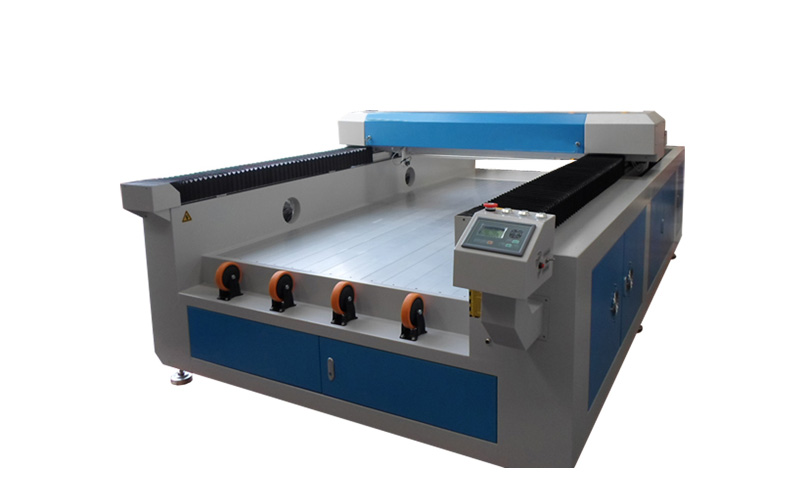

Heavy Duty Tombstone Laser Etching Machine EO-1325

CO2 Glass sealed laser tube China famous brand , good beam mode stability, service time over 1500~8000 working hours.40W~180W, good quality and stable output to extend the laser tube service time.... Send InquiryChat Now
Product Details



Quick Details
Application:Laser Engraving
Condition:New
Laser Type:CO2
Engraving Area:1300mm x 2500mm
Engraving Speed:60000mm/min
CNC or Not:Yes
Cooling Mode:Water Cooling
Applicable Material:Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood, cloth, painted metal
Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, NC, JPG, JPEG, GIF, PNG, TIF
Place of Origin:China (Mainland)
Brand Name:EO
Model Number:EO-1325
Dimension(L*W*H):3.45x1.97x1.2m
Certification:CE, ISO, SGS, FDA
After-sales Service Provided:Engineers available to service machinery overseas
Model:EO-1325
Laser tube power:60w / 80w /100w
Working area size:1300mm x 2500mm
Cooling mode:circulating water cooling (water pump, water chiller)
Controller:Leetro controller, RD controller
Machine table:alulminum blade table
other equipment:exhaust fan
Options:red dot, up/down lifting table, honeycomb table, rotary, auto focusing
Transmission:belt





Technical Parameters
Machine model:EO-1325 tombstone laser etching machine
Laser type:Sealed CO2 laser tube, wavelength: 10.64μm
Laser power:60W / 80W / 100W
Cooling mode:Circulating water cooling
Laser power control:0-100% software control
Control system:DSP offline control system
Max. engraving speed:60000mm/min
Max cutting speed:50000mm/min
Repetition accuracy:0.01mm
Min. letter:Chinese: 1.5mm; English: 1mm
Table size:1300x2500mm
Working voltage:110V/220V,50~60Hz
Working conditions:temperature: 0-45°C, humidity: 5%-95%
Control software language:English / Chinese
File formats:*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, *doc



1. CO2 Glass sealed laser tube China famous brand , good beam mode stability, service time over 1500~8000 working hours.

2. Laser Power

40W~180W, good quality and stable output to extend the laser tube service time.

3. Singapore imported lens and mirrors

High transmittance, good focusing, reflecting effect.

4. DSP control system, Leetro Controller

Leetro USB controller. USB interface, support online/offline working, English language system, adjustable cutting speed and power.

5. High accuracy stepper motors and drivers. Belt transmission

6. Solid flat table

7. Tiwan Linear guide rails

8. Lasercut 5.3 software, user’s manual

9. Tool box


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
