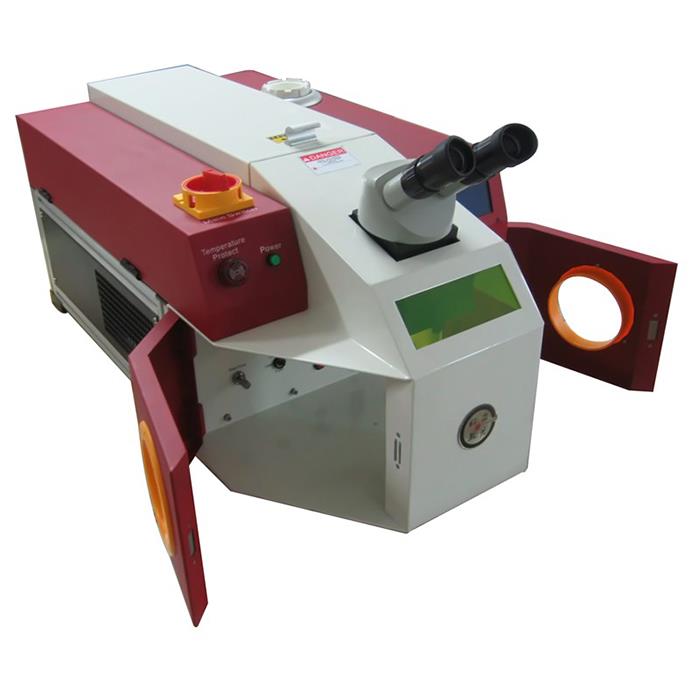

Mini Portable Jewelry Spot Laser Welding Machine

Mini Portable Jewelry Spot Laser Welding Machine

Product Name: CNC Plastic Mode Repair Laser Welding Machine
Classification: Plastic Laser Welding Machine
Application: alloy steel, nickel tool steel, steel alloy, etc
Place Of Origin: China
... Send InquiryChat Now
Product Details

Product Parameters


SPECIFICATIONS FOR Mini Portable Jewelry Spot Laser Welding Machine

Model

EO-SWS100/200

EO-SW150/200/300

Laser output power

100W/ 200W

150W/ 200W/300W

Laser type

YAG pulse

Laser wavelength

1064um

Pulse width

0.1ms-20ms

Pulse energy

100J

120J

Pulse frequency

0-50Hz

Size of welding spot

0.2mm-2.0mm

Adjusting range of light spot

1.8mm

Max. bearing of work bench

25KG

Repeating precision of work bench

-0.001

Positioning precision of work bench

-0.001

Sighting positioning system

HD-CCD monitor system

Cooling method

Water cooling

Max. output power

200W

Integrity power

5KW

Power supply

AC220VAC/380VAC+-15%/50HZ/25A

Guarantee

1 year

Dimension

840mm * 450mm * 500mm

Master unit 1000×580×1080mm

Cooling system 400×350×880mm

Net weight

50KG

120KG

Product Application


Mini Portable Jewelry Spot Laser Welding Machine acts the role of tasted fill holes, spot welder seam lines and sand holes, repair set foot part welder parts claw. Can also be used to fill sand holes and small teeth precision components such as batteries with nickel, integrated circuit leads, watches and clocks, kind, austenitic stainless in the fields of electron gun, assembly welder.


Mini Portable Jewelry Spot Laser Welding Machine is widely used in aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc, especially for the perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw.

The welder process of heat affected zone is small Welding spot size can be adjusted freely. Solder fine, smooth, beautiful, without too much welder post-treatment. Accurate positioning Welding speed, high quality, and high efficiency environmental pollution, the solder joints. Applicable gold, silver, platinum, stainless steel, titanium and so on many kinds of metal and alloy.


Product Features

1.jpg  One key operation: one key switch, simplify the starting process , convenient use process Cumbersome Process.
1.jpg  The single chip microcomputer control regulation: the storage 50 groups commonly used welder parameters, convenient use again.

1.jpg  The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects. The parameters are adjusted by the lever in the seal cavity, which is simple and highly efficient.
1.jpg  Use the most advanced light shielding system to eliminate the irritation to eyes by light during working.
1.jpg  Able to work for 24 hours continuously; stable performance; free of maintenance in 10,000 hours.
1.jpg  Human-based design accords with ergonomics, avoiding fatigue after long time working.


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of Mini Portable Jewelry Spot Laser Welding Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
